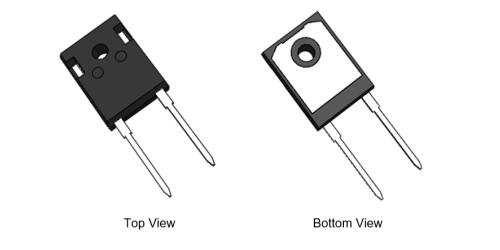

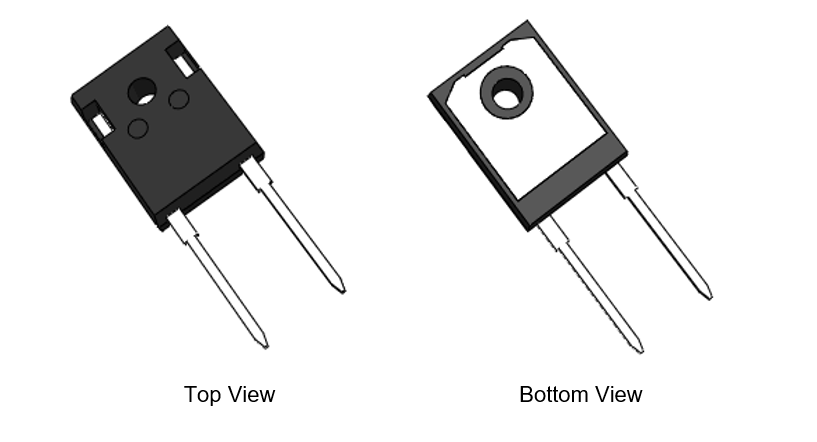

Image shown is for reference only. Actual package may vary. Refer to the product data sheet for package details.


Back to Fast/Ultra-Fast Rectifiers

DTH3006PTQ

30A Super-Fast Epitaxial Rectifier

Contact Sales

Suitable for switching power supplies and power switching circuit applications.

Soft, Super-Fast Switching Capability
Glass Passivated Die Construction
Rating to 600V Peak Reverse Voltage
High Reliability
Low Forward Voltage Drop
Lead-Free Finish; RoHS Compliant (Notes 1 & 2)
Halogen and Antimony Free. “Green” Device (Note 3)
The DTH3006PTQ is suitable for automotive applications requiring specific change control; this part is AEC-Q101 qualified, PPAP capable, and manufactured in IATF 16949 certified facilities. https://www.diodes.com/quality/product-definitions/

Product Specifications

Compliance (Only Automotive supports PPAP)	Automotive
AEC Qualified	Yes
Product Type	SUPER FAST EPITAXIAL RECTIFIER
Configuration	Single
MaximumAverageRectifiedCurrent I_O(A)	30 A
Maximum Peak Forward Surge Current I_{FSM (A)}	350 A
Peak RepetitiveReverse VoltageV_RRM(V)	600 V
Forward VoltageDrop V_F(V)	2.4 V
@ I_F(A)	30 A
Maximum ReverseCurrent I_R(µA)	100 µA
@ V_R(V)	600 V
Reverse RecoveryTime trr (ns)	45 ns
TotalCapacitance C_T(pF)	155 pF

Recommended Soldering Techniques

TN1.pdf
