HBS610

6.0A SURFACE MOUNT GLASS PASSIVATED BRIDGE RECTIFIER

Datasheet

Contact Sales

Description

General purpose use in AC-to-DC bridge full wave rectification for Fast Charging, Switching Power Supply, USB PD, Adapter and 3-in-1 DTV Power Board, etc.

Feature(s)

Glass Passivated Die Construction
Miniature Surface Mount Package Saves Space on PC Boards
High Current Capability
High Forward Current Capability up to 6.0A
High Heat Dissipation Capability

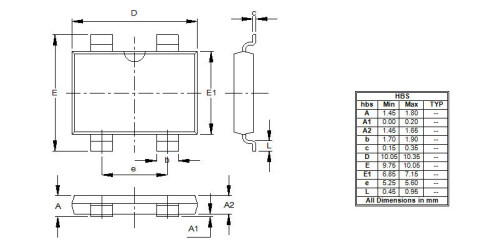

Low Profile Package
Low Forward Voltage Drop
Lead-Free Finish; RoHS Compliant (Notes 1 & 2)
Halogen and Antimony Free. “Green” Device (Note 3)
For automotive applications requiring specific change control (i.e. parts qualified to AEC-Q100/101/200, PPAP capable, and manufactured in IATF 16949 certified facilities), please contact us or your local Diodes representative. https://www.diodes.com/quality/product-definitions/

Product Specifications

Product Parameters

AEC Qualified	No
Compliance (Only Automotive supports PPAP)	Standard
Forward VoltageDrop V_F(V)	0.96
TotalCapacitance C_T(pF)	50 pF
MaximumAverageRectifiedCurrent I_O(A)	6 A
Peak RepetitiveReverse VoltageV_RRM(V)	1000 V
Maximum Peak Forward Surge Current I_{FSM (A)}	170 A
Maximum ReverseCurrent I_R(µA)	5 µA
