MSB08M (Obsolete)

Inactive Datasheet Archive

Contact Sales

Log in or register to manage email notifications about changes to datasheets or PCNs for this part.

Description

Suitable for AC to DC bridge full wave rectification for SMPS, LED lighting, adapter, battery charger, home appliances, office equipment, and telecommunication applications.

Feature(s)

  • Glass Passivated Die Construction
  • Compact, Thin Profile Package Design
  • Reliable Robust Construction
  • Ideal for SMT Manufacturing
  • Lead-Free Finish/RoHS Compliant
  • Halogen and Antimony Free. “Green” Device

Application(s)

  • SMPS
  • LED Lighting
  • Adapter
  • Battery Charger
  • Home Appliances
  • Office Equipment
  • Telecommunication Applications

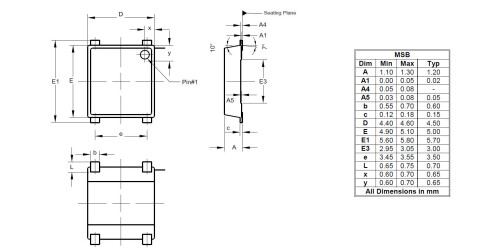

Product Specifications

Product Parameters

Compliance (Only Automotive supports PPAP) No
Forward VoltageDrop VF(V) 1.05
MaximumAverageRectifiedCurrent IO (A) 1
Maximum Peak Forward Surge Current IFSM (A) 30
Maximum ReverseCurrent IR (µA) 5
Peak RepetitiveReverse VoltageVRRM (V) 1000
AEC Qualified No
TotalCapacitance CT (pF) 10

Technical Documents

Recommended Soldering Techniques

TN1.pdf

Product Change Notices (PCNs)

A PCN may only apply to specific orderable part numbers in this datasheet. Please refer to the corresponding PCN to see the exact orderable part number(s) affected.

PCN # Issue Date Implementation Date Subject
PCN-2453 2020-04-07 2020-10-07 Device End of Life (EOL)
