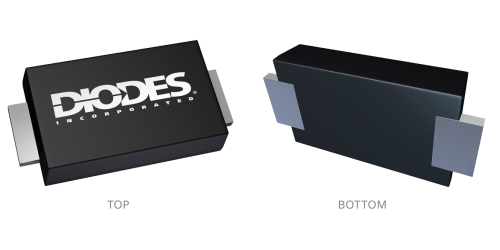

Image shown is for reference only. Actual package may vary. Refer to the product data sheet for package details.
D-FLat-A.png1.0A SURFACE MOUNT GLASS PASSIVATED RECTIFIER
Contact Sales
Log in or register to manage email notifications about changes to datasheets or PCNs for this part.
The S1MDFQ is a rectifier packaged in the low-profile D-FLAT package. Providing high current capability for standard rectification, this device is ideal for use in general applications.
| TotalCapacitance CT (pF) | 6 |
|---|---|
| AEC Qualified | Yes |
| Compliance (Only Automotive supports PPAP) | Automotive |
| Product Type | Standard Recovery Rectifier |
| Configuration | Single |
| MaximumAverageRectifiedCurrent IO (A) | 1 A |
| Peak ForwardSurge CurrentIFSM(A) | 30 A |
| Peak RepetitiveReverse VoltageVRRM (V) | 1000 V |
| Forward VoltageDrop VF(V) | 1.1 V |
| @ IF (A) | 1 A |
| Maximum ReverseCurrent IR (µA) | 5 µA |
| @ VR (V) | 1000 V |
| Reverse RecoveryTime trr (ns) | 1400 ns |
A PCN may only apply to specific orderable part numbers in this datasheet. Please refer to the corresponding PCN to see the exact orderable part number(s) affected.
| PCN # | Issue Date | Implementation Date | Subject |
|---|---|---|---|
| PCN-2702 | 2024-11-18 | 2025-02-17 | Transfer of Wafer Manufacturing Site and Additional Wafer Source for Select Automotive Products |
| PCN-2619 | 2023-04-12 | 2023-07-12 | Qualification of Additional Clip Bonding, Lead Frame Structure (Matrix) and Mold Compound for Select Automotive Products |
| PCN-2500 | 2021-03-24 | 2021-06-24 | Transfer Final Test and Packing from Eris Plant 1 in Taipei City, Taiwan to Eris Plant 2 in Taoyuan, Taiwan for Automotive Products |
| PCN-2404 | 2019-05-21 | 2019-08-21 | Transfer Assembly Lines to Eris Assembly Site (Plant 2) in Taoyuan, Taiwan from the Existing Assembly Site (Plant 1) in Taipei City, Taiwan for Select Discrete Automotive Products |
| PCN-2341 | 2019-02-27 | 2019-05-27 | Qualification of Additional Wafer Source for Select Automotive Products |
