SBR40U300CT

SBR

Contact Sales

Log in or register to manage email notifications about changes to datasheets or PCNs for this part.

Product Specifications

Product Parameters

@ TerminalTemperature TT (ºC) 148
AEC Qualified Yes
Compliance (Only Automotive supports PPAP) Standard
Configuration Dual
Maximum Average Rectified Current IO (A) 40
Peak Repetitive Reverse Voltage VRRM (V) 300
Peak Forward Surge Current IFSM (A) 235
Forward VoltageDrop VF(V) 0.89
@ IF (A) 20
Maximum Reverse Current IR (μA) 100
@ VR (V) 300
Reverse Recovery Time trr (ns) -
Total Capacitance CT (pF) -

Related Content

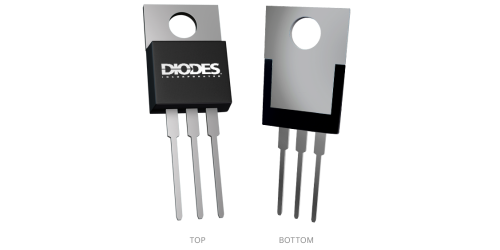

Packages

Technical Documents

Recommended Soldering Techniques

TN1.pdf

RoHS CofC
