Back to Schottky (.5A and Above)

SDM05A30CP3

0.5A SCHOTTKY BARRIER RECTIFIER CHIP SCALE PACKAGE

Contact Sales

Log in or register to manage email notifications about changes to datasheets or PCNs for this part.

Description

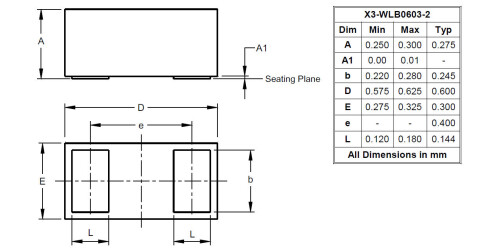

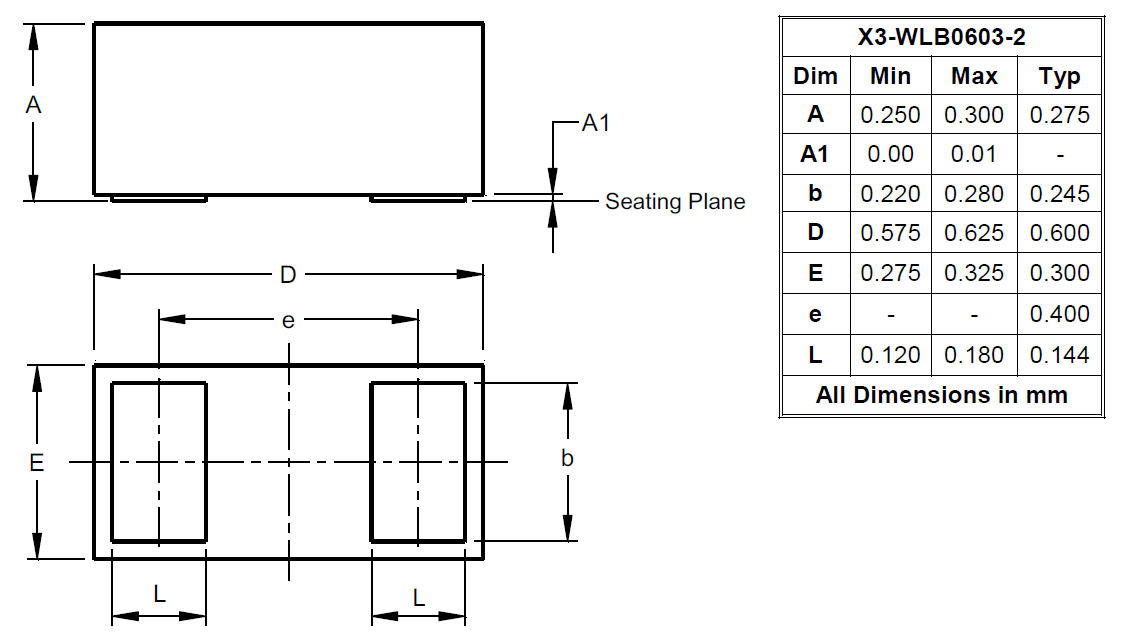

The SDM05A30CP3 is a 30V 0.5A Schottky barrier diode optimized for low forward-voltage drop and low leakage current. The device is in a compact Chip Scale package (CSP) that occupies only 0.18mm2 of board space. The low thermal resistance enables designers to meet design challenges of increasing efficiency while reducing board space. It is ideally suited for use in portable applications.

Feature(s)

  • 0.18mm2 Footprint, Offboard Profile of 0.28mm
  • Low Forward Voltage—Minimizes Power Dissipation Losses
  • Low Leakage—Maximizes Battery Power

Application(s)

  • Blocking Diode
  • Boost Diode
  • Switching Diode
  • Reverse Protection Diode

Product Specifications

Product Parameters

AEC Qualified No
Compliance (Only Automotive supports PPAP) Standard
Configuration Single
MaximumAverageRectifiedCurrent IO (A) 0.5 A
@ TerminalTemperature TT (ºC) N/A ºC
Peak RepetitiveReverse VoltageVRRM (V) 30 V
Peak ForwardSurge CurrentIFSM(A) 4.8 A
Forward VoltageDrop VF(V) 0.71 V
@ IF (A) 0.5 A
Maximum ReverseCurrent IR (µA) 9 µA
@ VR (V) 30 V
TotalCapacitance CT (pF) 7 pF

Related Content

Packages

Applications

Technical Documents

SPICE Model

Recommended Soldering Techniques

TN1.pdf

Product Change Notices (PCNs)

A PCN may only apply to specific orderable part numbers in this datasheet. Please refer to the corresponding PCN to see the exact orderable part number(s) affected.

PCN # Issue Date Implementation Date Subject
PCN-2560 2021-12-16 2021-12-16 Additional Wafer Source (GFAB) and Additional Assembly and Test Site (SAT)
