SDM5U45EP3

5A SCHOTTKY BARRIER DIODE SURFACE MOUNT PACKAGE

Contact Sales

Log in or register to manage email notifications about changes to datasheets or PCNs for this part.

Description

The SDM5U45EP3 is a 45V 5A Schottky Barrier Rectifier that is optimized for low forward voltage drop and low leakage current, housed in a small surface mount package that occupies only 2mm2 board space with very low profile. The low thermal resistance enables designers to meet design challenges of increasing efficiency while at the same time reducing board space.

Feature(s)

  • 2mm2 Footprint – 67% Smaller Than PowerDI123
  • Off Board Profile of 0.3mm – 70% Thinner Than PowerDI123
  • Low Forward Voltage Drop Reduces Power Dissipation
  • Soft Switching Characteristic Ensures That EMI and EFI Are Minimized
  • Guard Ring Die Construction for Transient Protection
  • Totally Lead-Free & Fully RoHS Compliant
  • Halogen and Antimony Free. “Green” Device
  • For automotive applications requiring specific change control (i.e. parts qualified to AEC-Q100/101/200, PPAP capable, and manufactured in IATF 16949 certified facilities), please contact us or your local Diodes representative. https://www.diodes.com/quality/product-definitions/

Application(s)

  • Blocking Diode
  • Boost Diode
  • Switching Diode
  • Reverse Protection Diode

Product Specifications

Product Parameters

AEC Qualified No
Compliance (Only Automotive supports PPAP) Standard
Configuration Single
MaximumAverageRectifiedCurrent IO (A) 5 A
Peak RepetitiveReverse VoltageVRRM (V) 45 V
Peak ForwardSurge CurrentIFSM(A) 50 A
Forward VoltageDrop VF(V) 0.49 V
@ IF (A) 5 A
Maximum ReverseCurrent IR (µA) 40 µA
@ VR (V) 45 V

Related Content

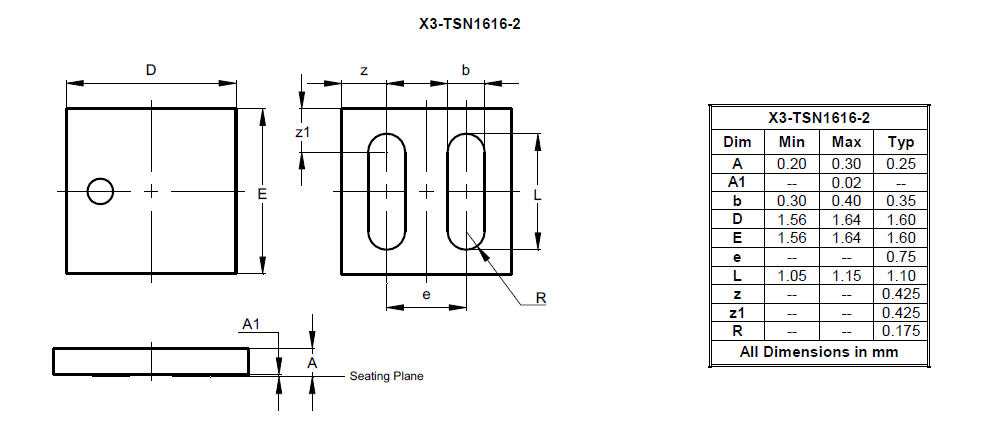

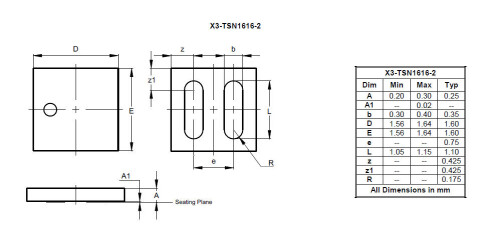

Packages

Technical Documents

Recommended Soldering Techniques

TN1.pdf

RoHS CofC

Product Change Notices (PCNs)

A PCN may only apply to specific orderable part numbers in this datasheet. Please refer to the corresponding PCN to see the exact orderable part number(s) affected.

PCN # Issue Date Implementation Date Subject
PCN-2560 2021-12-16 2021-12-16 Additional Wafer Source (GFAB) and Additional Assembly and Test Site (SAT)
