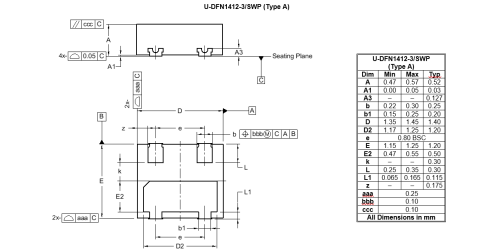

PNP, 45V, 0.5A, DFN1412-3
Log in or register to manage email notifications about changes to datasheets or PCNs for this part.
| Category | Small Signal Transistor |
|---|---|
| Compliance(Only Automotive supports PPAP) | Standard |
| Polarity | PNP |
| VCEO, VCES (V) | 45 |
| IC (A) | 0.5 |
| ICM (A) | 1 |
| PD (W) | 0.5 |
| hFE (Min) | 100 |
| hFE (@ IC) (A) | 0.1 |
| hFE(Min 2) | 40 |
| hFE (@ IC2) (A) | 0.5 |
| VCE(sat) Max (mV) | 700 |
| VCE(SAT) (@ IC/IB) (A/mA) | 0.5/50 |
| fT (MHz) | 80 |
| Spice Model | BC807-16FSW.spice.txt |
